Bobcat Excavator and Track Loader

At Carolina Containers we are very excited to let all of our customers know that we are now offering equipment rentals as an add-on for your convenience.

To be specific we have both a Bobcat Excavator and a Bobcat Track Loader available for you to rent.

The great thing with us being in the shipping container business is that we already have all of the equipment that we need to transport this equipment extremely easily.

If needed, we could drop off one of each of our pieces of equipment while we’re delivering your shipping container, and we’ll be out there to pick it all up as soon as you’re done with it!

Please contact us for more information about our equipment rentals today and we’ll get right back with you

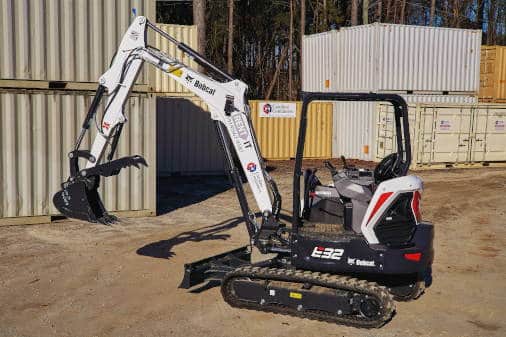

E32 25HP R-Series Bobcat Compact Excavator

Bobcat excavator in available condition available for rent. Part of the R-Series, the Bobcat® E32 compact (mini) excavator packs powerful performance and maneuverability into a conventional tail swing design. Narrower than the E35, this machine is ideal if you frequently work around width restrictions such as doors or gates. Boost your digging performance with the long arm option or a clamp-ready extendable arm option.

General
Manufacturer Bobcat
Model E32 25 HP
Category Excavators
Subcategory Compact Excavators
Transmission Type Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)
Brake Type Wet Multi Disc
Max Wheel Tip Speed 2,985 ft/min
Recommended Drum Speed 20 rpm
Recommended Drum Speed At 11 gal/min
Tip Speed At22gpm 3,256 ft/min
Travel Speed Reverse 17.8 mph
Dig Depth 48 in
Dig Width 914.4 mm
Arm Digging Force 4,589 lbf
Auxiliary Pressure 2,987 psi
Auxiliary Standard Flow 16.9 gal/min
Boom Swing Left 75°
Boom Swing Right 55°
Bucket Digging Force 6,969 lbf
Lift Radius 118 in
Max Dig Depth 10.2 ft
Max Dump Height 11 ft
Max Reach At Ground Level 16.3 ft
Rated Lift Capacity 2969 lb
Travel Speed High 2.9 mph
Travel Speed Low 1.6 mph
Click to See More Specs
Engine
Engine Model 3FT-TH4-U
Displacement 111 in³
Horsepower 24.8 hp
Emissions Tier Epa Tier 4
Engine Fuel Diesel
Fuel Tank Capacity 13.7 gal
Max Governed Rpm 2,200 rpm
Optional Horsepower n/a
Emissions Tierepa Tier 4
Engine Cooling Liquid
Fuel Tank 14.8 gal
Gross Hp 57.7 hp
Number Of Cylinders 3
Rpm 2600
Operational
Travel Speed Reverse 17.8 mph
Dig Depth 48 in
Dig Width 914.4 mm
Arm Digging Force 4,589 lbf
Auxilliary Pressure 2,987 psi
Auxilliary Standard Flow 16.9 gal/min
Boom Swing Left 75°
Boom Swing Right 55°
Bucket Diggin Force 6,969 lbf
Lift Radius 118 in
Max Dig Depth 10.2 ft
Max Dump Height 11 ft
Max Reach At Ground Level 16.3 ft
Rated Lift Capacity 2969 lb
Travel Speed High 2.9 mph
Travel Speed Low 1.6 mph
Pto Hp 48.3 hp
Auxilliary High Flow 36.6 gal/min
Cargo Box Bed Load Capacity 2000 lb
Cargo Box Bed Load Height 38.2 in
Cargo Box Height 10 in
Cargo Box Length 56 in
Cargo Box Maximum Load 2000 lb
Cargo Box Volume 18 ft³
Cargo Box Width 51 in
Dig Depth Without Extensions 72 in
Dig Force Bucket 4,878 lbf
Dig Force Dipper 3,291 lbf
Ground Clearance 9.2 in
Height To Bucket Hinge Pin 132 in
Lift Capacity 1775 lb 24” behind lift point
Lift Capacity At Behind Lift Point 2,908 lb
Lift Capacitymm Ahead Of Bkt Pivot 2,324 lb
Machine Rated Capacity 2200 lb
Max Travel Speed 17 mph
Maximum Dig Depth 72 in
Mid Pto Rpm 2000
Operating Weight 1925 lb
Operating Weight Less Bit 454 lb
Operating Weight V 1113 lb
Operating Weight With Teeth V 1,177 lb
Operating Weight Withfrontgate 2,367 lb
Operating Weight Without Teeth V 1,213 lb
Operating Weightwith Pinon Mount 876 lb
Operating Weightwith X Change Mount 881 lb
Outside Turning Diameter 210 in
Point Hitch Category 2
Power Take Off Horsepower 25 hp
Pt Lift Control Type Position with Draft Control
Rated Operating Capacity Sae 3,325 lb
Reach At Maximum Height 31.5 in
Rear Pto Rpm 540
Rear Pto System Independent
Rear Power Take Off System 540
System Relief At Quick Couplers 3,500 psi
Three Point Hitch Category 1
Tipping Load 6650 lb
Total Vehicle Rated Capacity 4200 lb
Travel Speed 17.79 mph
Travel Speed Two Speed Option 12.3 mph
Turning Radius 85.8 in
Turning Radius All Wheel Steer Mode 151.5 in
Hydraulics
Flow Range Max 28 gal/min
Flow Range Min 15 gal/min
Implement Hydraulic Flow 14 gal/min
Steering Hydraulic Flow 12 gal/min
Total Hydraulic Flow 26 gal/min
Dimensions
Length 183.5 in
Height 96.2 in
Width 61 in
Wheelbase 48.3 in
Ground Clearance 7.2 in
Height With Operator Cab 96.2 in
Operating Weight 7,183 lb
Overall Length In Travel Position 183.5 in
Weight Class 3.3 t
Bed Height From Ground 38.2 in
Blade Height 25.2 in
Box Blade Moldboard Width 84 in
Bucket Capacity 18.5 ft3
Capacity 6.9 ft3
Closed Height 34.1 in
Closed Length 49.1 in
Cutting Edge Length 6 in
Cutting Edge Reversible Length 6 in
Cutting Edge Reversible Width 0.6 in
Cutting Edge Width 79 in
Cutting Width 89.5 in
Discharge Chute Height 93.3 in
Drum Diameter Padded 26 in
Drum Width 80 in
Drum Width Max 40 in
Feed Table Height 25.4 in
Fork Width 4 in
Frame Weight 356 lb
Grapple Width 82.5 in
Height Hammer Fully Raised 74 in
Height V 37.6 in
Height With Blade Extension 32.8 in
Hopper Capacity 10 ft3
Intake Height 21 in
Iso Heaped Capacity V 88.99 ft3
Iso Struck Capacity V 0.38 ft3
Length V 46.4 in
Length With Standard Bucket 141.6 in
Length Without Attachment 114.3 in
Maximum Aggregate Size 1.5 in
Maximum Cutting Capacity 4 in
Moldboard Cutting Edge Reversible Height 6 in
Moldboard Cutting Edge Reversible Width 0.5 in
Open Height 51.8 in
Open Length 49.1 in
Overall Attachment Width 89.9 in
Pallet Fork Width 1.3 in
Sweep Width 84 in
Sweep Width Fully Angled 65.5 in
Sweep Width Fully Angled At 25deg
Sweep Width Straight 70 in
Vertical Pumping Height 50 ft
Weight Of Hammer 1,140 lb
Width V 91.8 in
Width With Bucket 74 in
Working Width Angled Blade 85 in
Working Width Fully Angled 83 in
Working Width Scoop Blade 84 in
Working Width Straight Blade 98 in
Working Width V Blade 85.5 in

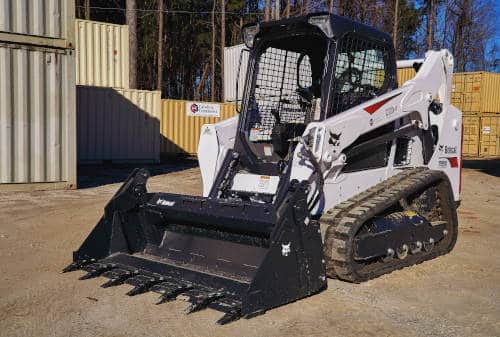

T590 T4 Bobcat Compact Track Loader

The Bobcat® T590 Compact Track Loader is designed to bring you high performance in a compact and stable package. Its low ground pressure allows you to work in rough conditions or where you need to minimize ground disturbance – while still providing heavy load-carrying capacity and strong traction. It’s your perfect solution, the first machine on site and the last to leave!

General
Manufacturer Bobcat
Model T590 Standard
Category Loaders
Subcategory Compact Track Loaders
Condition Other
Stock Number rental T590 TEC
Transmission Type Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)
Blade Tip Speed Max 9,000 ft/min
Brake Type Wet Multi Disc
Max Wheel Tip Speed 2,985 ft/min
Mower Blade Tip Speed 18,770 ft/min
Recommended Drum Speed 20 rpm
Recommended Drum Speed At 11 gal/min
Tip Speed At22gpm 3,256 ft/min
Click to See More Specs
Operational
Tipping Load 6000 lb
Dig Depth 62 in
Auxilliary High Flow 26.7 gal/min
Auxilliary Standard Flow 17.1 gal/min
Ground Pressure Rubber 5.1 psi
Height To Bucket Hinge Pin 119 in
Length Of Track On Ground 54.1 in
Operating Capacity 50% of Tip: 3000 lb
Operating Weight 7822 lb
Optional Track Width 15.8 in
Rated Operating Capacity Sae 2,100 lb
Reach At Maximum Height 34.9 in
System Relief At Quick Couplers 3,500 psi
Track Width 12.6 in
Travel Speed 7.1 mph
Travel Speed Two Speed Option 10.4 mph
Turning Radius 80 in
Pto Hp 48.3 hp
Arm Digging Force 8,253 lbf
Auxilliary Pressure 3,045 psi
Boom Swing Left 64°
Boom Swing Right 61°
Bucket Diggin Force 16,269 lbf
Cargo Box Bed Load Capacity 2000 lb
Cargo Box Bed Load Height 38.2 in
Cargo Box Height 10 in
Cargo Box Length 56 in
Cargo Box Maximum Load 2000 lb
Cargo Box Volume 18 ft³
Cargo Box Width 51 in
Dig Depth Without Extensions 72 in
Dig Force Bucket 2,200 lbf
Dig Force Dipper 968 lbf
Dig Width 914.4 mm
Grinder Reach At Ground Level 74 in
Ground Clearance 9.2 in
Lift Capacity 1775 lb 24” behind lift point
Lift Capacity At Behind Lift Point 2,908 lb
Lift Capacitymm Ahead Of Bkt Pivot 2,324 lb
Lift Radius 118 in
Machine Rated Capacity 2200 lb
Max Dig Depth 15.5 ft
Max Dump Height 16.5 ft
Max Lift 173 mm
Max Reach At Ground Level 23.6 ft
Max Travel Speed 17 mph
Maximum Dig Depth 76.2 in
Maximum Operating Pressure 3,300 psi
Mid Pto Rpm 2000
Operating Weight Empty 1,300 lb
Operating Weight Full 1,425 lb
Operating Weight Less Bit 454 lb
Operating Weight V 1113 lb
Operating Weight With Teeth V 1,177 lb
Operating Weight Withfrontgate 3,065 lb
Operating Weight Without Teeth V 1,213 lb
Operating Weightwith Pinon Mount 876 lb
Operating Weightwith X Change Mount 881 lb
Outside Turning Diameter 210 in
Point Hitch Category 2
Power Take Off Horsepower 25 hp
Pt Lift Control Type Position with Draft Control
Pump Capacity 12 gal/min
Rated Lift Capacity 9754 lb
Rear Pto Rpm 540
Rear Pto System Independent
Rear Power Take Off System 540
Standard Boom Length 79 in
Three Point Hitch Category 1
Total Vehicle Rated Capacity 4200 lb
Travel Speed High 2.9 mph
Travel Speed Low 1.7 mph
Travel Speed Reverse 2.9 mph
Turning Radius All Wheel Steer Mode 151.5 in
Dimensions
Length 133 in
Height 77.8 in
Width 67 in
Wheelbase 52.9 in
Ground Clearance 7.2 in
Height With Operator Cab 77.8 in
Length With Standard Bucket 133 in
Length Without Attachment 104.6 in
Width With Bucket 68 in
Bed Height From Ground 38.2 in
Blade Height 432 mm
Bolster Width 1468 mm
Box Blade Moldboard Width 84 in
Bucket Capacity 14.3 ft3
Capacity 6.9 ft3
Capacity Heaped 87.9 ft3
Capacity Struck 67.5 ft3
Clamp Width 15.9 in
Closed Height 34.1 in
Closed Length 49.1 in
Cutting Edge Length 6 in
Cutting Edge Reversible Length 6 in
Cutting Edge Reversible Width 0.6 in
Cutting Edge Width 79 in
Cutting Width 66 in
Discharge Chute Height 93.3 in
Drum Diameter Padded 26 in
Drum Width 80 in
Drum Width Max 40 in
Feed Table Height 25.4 in
Fork Width 4 in
Frame Weight 893 lb
Frame Width Std Equipment 56.2 in
Grapple Width 82.5 in
Height Hammer Fully Raised 74 in
Height V 37.6 in
Height With Blade Extension 32.8 in
Hopper Capacity 10 ft3
Intake Height 33.8 in
Iso Heaped Capacity V 88.99 ft3
Iso Struck Capacity V 0.38 ft3
Length V 46.4 in
Maximum Aggregate Size 1.5 in
Maximum Cutting Capacity 4 in
Maximum Cutting Height 32 in
Moldboard Cutting Edge Reversible Height 6 in
Moldboard Cutting Edge Reversible Width 0.5 in
Open Height 51.8 in
Open Length 49.1 in
Operating Weight 18,977 lb
Overall Attachment Width 89.9 in
Overall Lenght In Travel Position 246 in
Pallet Fork Width 4 in
Sweep Width 84 in
Sweep Width Fully Angled 65.5 in
Sweep Width Fully Angled At 25deg
Sweep Width Straight 70 in
Transport Width 68.8 in
Vertical Pumping Height 50 ft
Weight Class 8.6 t
Weight Of Hammer 1,140 lb
Width Fully Angled 76 in
Width V 91.8 in
Widths Available Max 8 in
Widths Available Min 6 in
Working Width 72 in
Working Width Angled Blade 85 in
Working Width Fully Angled 83 in
Working Width Scoop Blade 84 in
Working Width Straight Blade 98 in
Working Width V Blade 85.5 in
